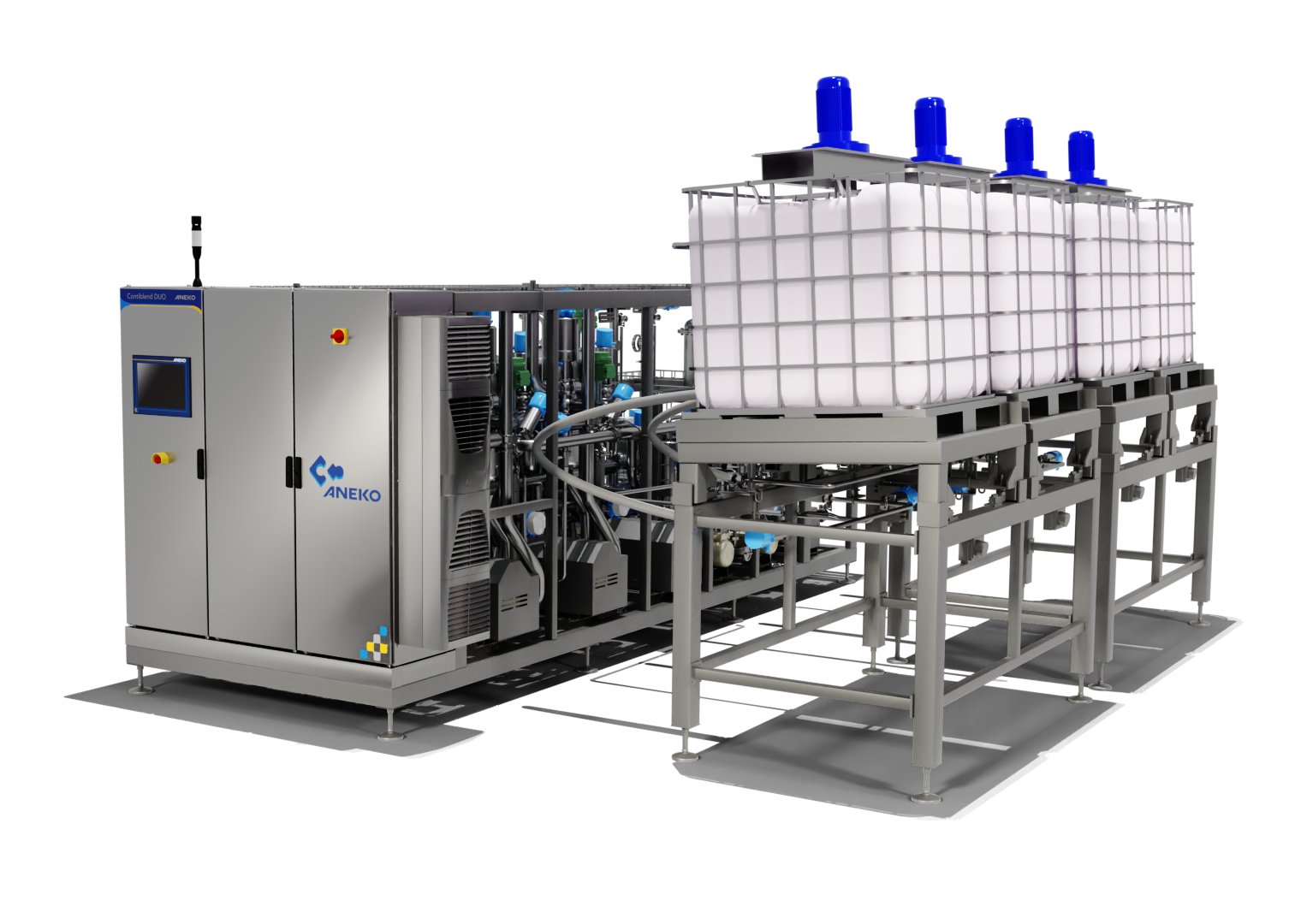

Contiblend DUO

Continuous automatic in-line mixing system for the production of two final syrup or two final beverage flavors at the same time, fully automatic, designed so it can be easily integrated into any processing unit.

‍

• Can generate two flavors of syrup or final beverage at the same time, according to the process, by mixing different types and amounts of liquid components.

• Different skid sizes, agitators and scales for IBC containers.
  ‍
• Pumping system for concentrated liquids that are not next to the Contiblend DUO. (Distances greater than 30 meters).

• Capacity:

  • Final syrup: up to 50,000 LPH
  • Final beverage: up to 80,000 LPH
• Accuracy: +-0.01 °Brix.
• CP/CPK: > 1.33.
• The measurement of °Brix is conducted on the output line by using a high-precision U tube effect system:

  • Syrup and beverages: 0.01 °Brix.
  • Light beverages: 0.002 °Brix.

• Smallest footprint
  Compact system designed to occupy as less space as possible in your plant, allowing greater use of the available floor space.
  ‍

• High precision, best performance
  Mass flow rates measurements, which allow the system to accept variations in °Brix in the final syrup inlet, plus the dosage through pumps selected according to the product to be mixed and the compensation through system feedback, allows the system to achieve a high precision on the final product, and therefore better performance.
  Optionally, an automatic feedback measurement of the product output compensates the input, in order to obtain high precision during production.
  ‍

• Modification controls
  The edition of recipes is accessible by authorized operators that allows their creation and/or modification. This allows the simple creation and/or modification of recipes with flexibility. Optionally, it is possible to have a database with the extended history of the elaborations that have been carried out in the system.
  ‍

• Easy operation
  The process is controlled through the touch-screen provided by the equipment as HMI, from where all the operations can be carried out in a simple and intuitive way. Contiblend DUO has the option to replicate the screen and the operation of the equipment remotely via an installed PC in any area of the plant.
  ‍

• High flow rate without losing precision
  The system allows a wide range of production flow rates while maintaining the necessary precision, achieving great flexibility and ensuring the correct mixing for the different recipes stored in the equipment.
  ‍

• CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure a thorough cleaning.
