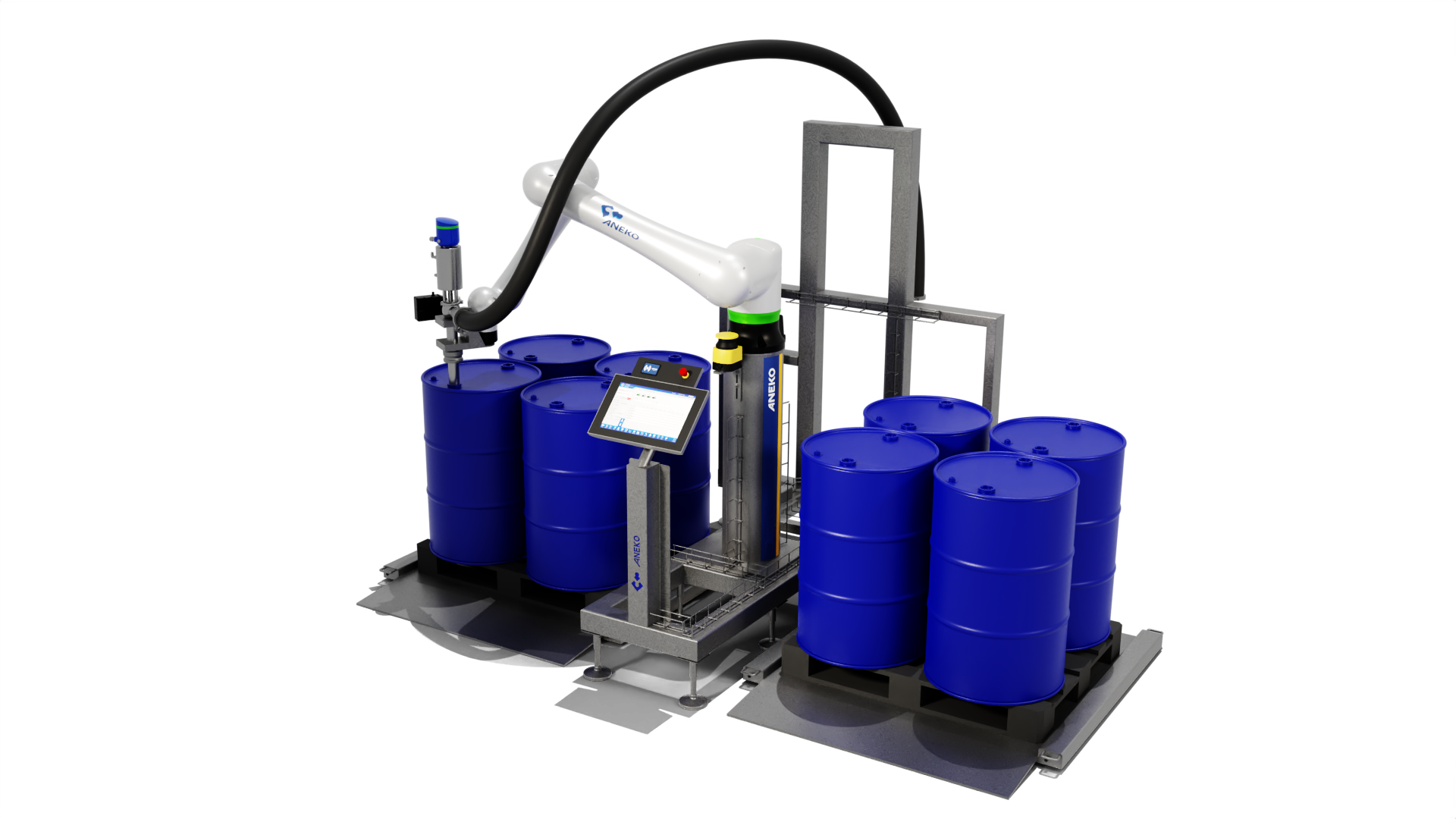

Contifill

Designed to fill all types of concentrated liquids quickly, easily, and efficiently into different containers, including drums, jerrycans, IBCs, and others. Its fully sanitary construction and simple operation make it ideal for integration into any processing plant.

• The equipment features a 3D artificial vision system to detect container openings and an integrated weighing system to monitor the product weight, ensuring accurate and reliable filling.

‍

• The specially designed seat valve integrated into the filling lance ensures precise filling while preventing dripping and minimizing product waste.

‍

• The system automatically detects the container opening and fills it according to the selected product configuration. Operators simply select the desired product, and once filling is complete, the equipment returns to its home position for automatic cleaning through a CIP process.

• The equipment operates along three axes (X, Y, Z) using a robotic arm and a 3D artificial vision system, enabling precise and automatic positioning over each container opening.

‍

• Optionally, the equipment can be configured with a manual operating system and filling lances of different sizes to accommodate smaller containers, such as 25-liter containers.

‍

‍

‍

• Load capacity: Simple version with 4 drums and double version with 8 drums, both having a diameter of 600 mm, including the corresponding pallet.

‍

• Viscosity: Up to 300,000 cSt.

‍

• Conveyor system: Conveyor-based system available.

‍

• Other sizes and viscosities available upon request.

‍

• Fully Customizable Process‍

The system can be configured to fill containers from the bottom, either remaining at the bottom or rising with the liquid level, or from the top. The filling method can be customized for each product configured in the system.

‍

• CIP Ready

Designed from the outset to be compatible with in-line CIP systems, ensuring thorough and efficient cleaning.

‍

• Modifications Control

Product configuration is accessible only to authorized operators, allowing for the easy creation and modification of products with maximum flexibility. Optionally, a database can be provided to maintain an extended history of product formulations and production runs carried out by the system.

‍

• Easy Operation

The process is controlled through the equipment's touchscreen HMI, allowing all operations to be performed in a simple and intuitive manner. Contfil also offers the option to replicate the screen and operate the equipment remotely through a PC installed anywhere in the plant.

‍

• Plant Connection‍

By scanning QR codes on containers, the system identifies the product to be filled into each container. This allows the plant to determine which containers need to be processed and the order in which they are filled.

‍

‍
