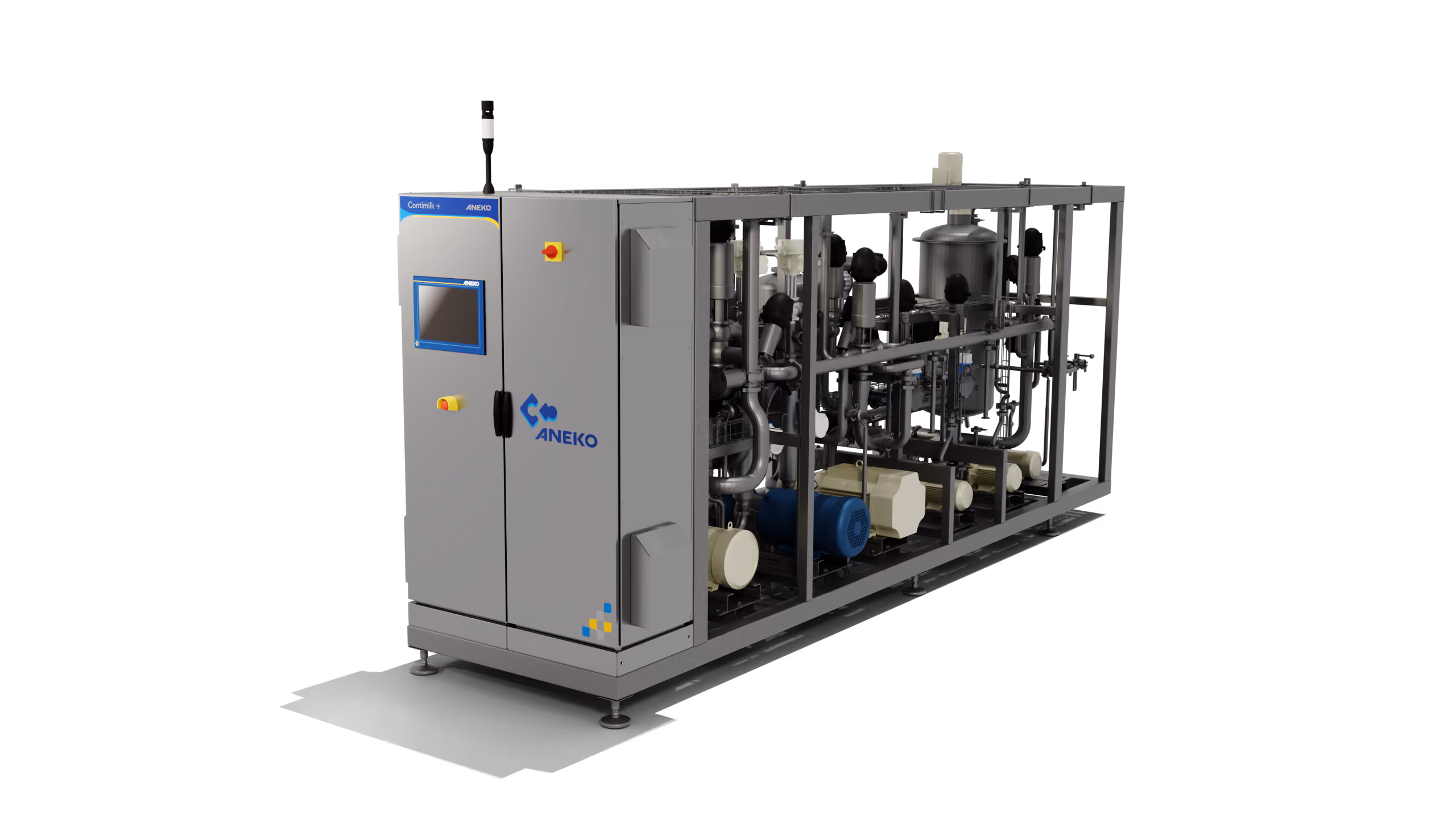

Contimilk +

Continuous liquid lines mixing system, fully automatic, designed so it can be easily integrated into any processing unit.

• Can generate a wide range of products for the dairy industry, based on the inline mixing of different streams, such as standardized milk, skim milk, whole milk, protein, cream, and vegetable fat, among others.

• The system allows for continuous standardization, saving time and money while simplifying the standardization process compared to the use of batch tanks.

• Mass flow rate measurements control each line to be mixed, while product-specific dosing pumps and system feedback compensation allow the system to achieve high precision in the final product, resulting in better overall performance

• Optionally, an automatic feedback measurement of the product output can compensate for the input, ensuring high precision throughout production.

• Capacity: - Final product: 4,000 LPH to 80,000 LPH. Other capacities available under request.

• Mixing Accuracy: +-0.05% up to +-0.1% according to the option requested.

• CP/CPk: > 1.33.

‍

• CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure complete and thorough cleaning.

‍

• All the information, at any time
  Constant data registry, exportable and filterable by production, with the possibility of accessing all equipment records through the local network from the device defined by the customer.

‍

• Smallest footprint
  Compact system designed to occupy as little space as possible in your plant, allowing for greater use of the available floor space.

‍

• Constant standardization
  The modulating valve system allows for the continuous standardization of milk, cream, protein lines, vegetable oils, and other products.

‍

• Modifications Control
  Recipe editing is accessible to authorized operators, allowing for the simple creation and modification of recipes with maximum flexibility. Optionally, a database can be provided with an extended history of the formulations and production runs carried out by the system.

‍

• Easy operation
  The process is controlled through the touchscreen HMI provided with the equipment, allowing all operations to be performed in a simple and intuitive way. Contimilk+ also offers the option to replicate the screen and operate the equipment remotely through a PC installed in any area of the plant.

‍
