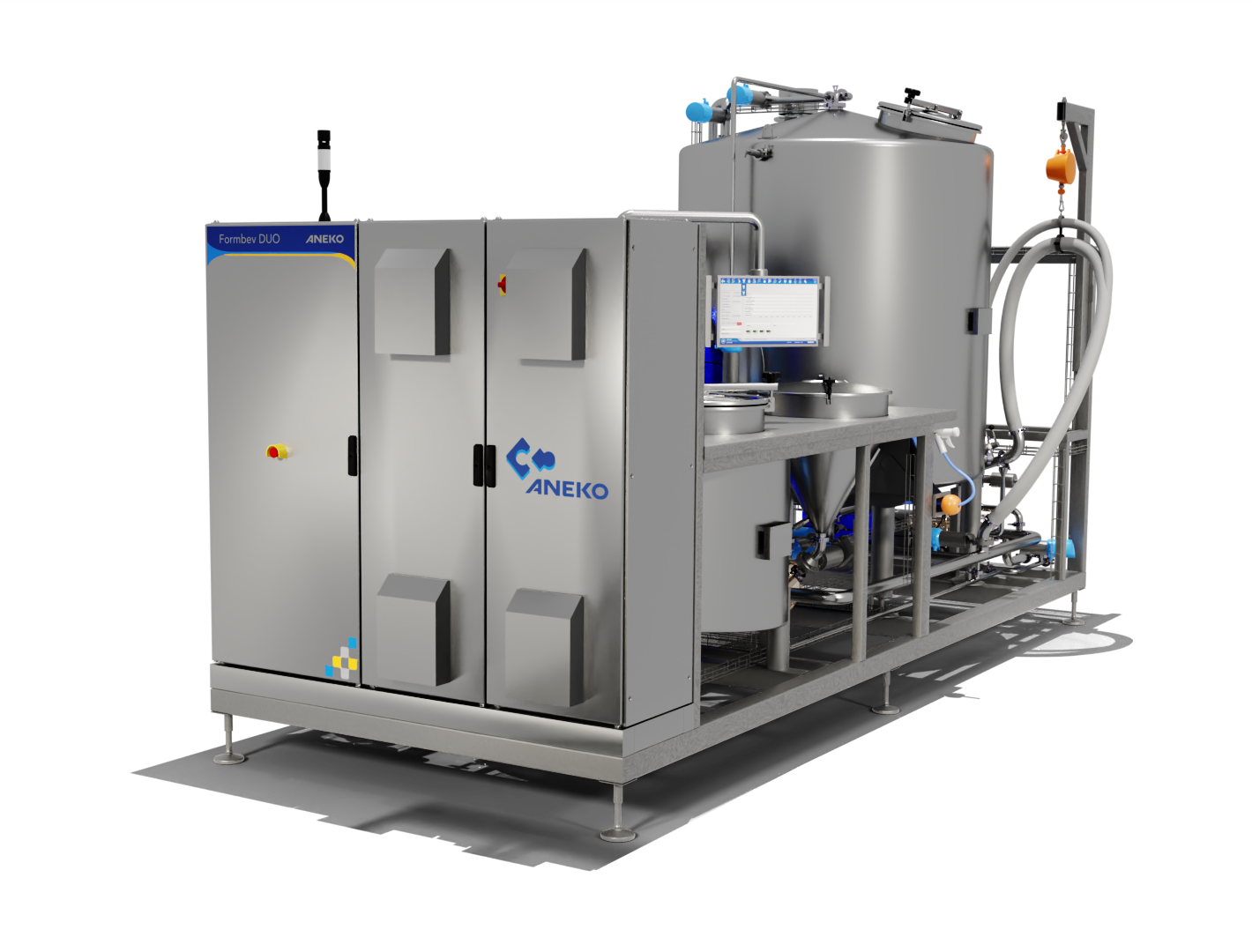

Formbev DUO

Syrup or beverage formulation system, mounted on a skid, fully automatic, capable of feeding two preparation tanks simultaneously, designed so that it can be easily integrated into any processing unit.

Working as a batch process, this system formulates beverages or syrups in preparation tanks from recipes of concentrated parts.
‍

• The equipment features a dual product outlet to supply two preparation systems simultaneously.
  ‍
• The additional outlet operates with the Formbev’s high-shear dissolution system, while the standard outlet is enabled to work with all Formbev systems, such as easy dissolution, difficult dissolution, drum emptying systems, etc.
  ‍
• The system allows you to adjust the amount of product that you wish to produce from the selection of a recipe for a given product.
  ‍
• The system has the benefits of the integration of the Bamix or Bamix HD powder mixer along with one or two small tanks for mixing liquids, and the Emsys for the automatic emptying of drums if needed.
  ‍
• Has an inlet line of water controlled by a flow meter which counts the volume according to the volume entered in the recipe, depending on the step. The flush of concentrated with water is also measured and recorded on the system.

‍

• Standard Outlet Concentrated transfer flow-rate: up to 45,000 LPH, up to 7 bar.
  ‍
• DUO Outlet Concentrated transfer flow-rate: up to 25,000 LPH, up to 3 bar.
  ‍
• Standards: DIN / ISO.
  ‍
• Materials in contact with the product: 304 / 304L / 316 / 316L.

* Other capacities available upon request.

‍

‍

‍

• Greater efficiency with minimum loss
  The equipment can, optionally, have concentrates recognition, using wireless bar code readers, to ensure the consumption of each of the needed parts. The product change is instantaneous, without waste and with high speed concentrate preparation to decrease the waiting time. Against other equipment in the market, Formbev DUO presents a big reduction in the consumption of water, less waste, lower energy consumption and provides the possibility of dissolving all types of concentrates, either liquid or solid.

• CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure a thorough cleaning.

• All the information, at any time
  Production reports with all the details of the process, including quantity of supplied product, time, operator name, name of the recipe, step by step description and syrup tank. This information can be delivered in a open database for consultation with possibility of access via ethernet from the device that the customer defines to all the records of use of the equipment.

• Modifications control
  The edition of recipes is accessible by authorized operators that allows their creation and/or modification. This allows the simple creation and/or modification of recipes with flexibility. Optionally, it is possible to have a database with the extended history of the elaborations that have been carried out in the system.

• Easy operation
  The process is controlled through the touch-screen provided by the equipment as HMI, from where all the operations can be carried out in a simple and intuitive way. Formbev DUO has the option to replicate the screen and the operation of the equipment remotely via an installed PC in any area of the plant.

• Precise formulation
  The Brix adjustment of the final product is done by means of in line measuring. The system will compensate for variations in Brix in the simple syrup supply making sure that the kilograms of sugar, corn syrup and kilograms/liters of water corresponds to those required in the recipe.
