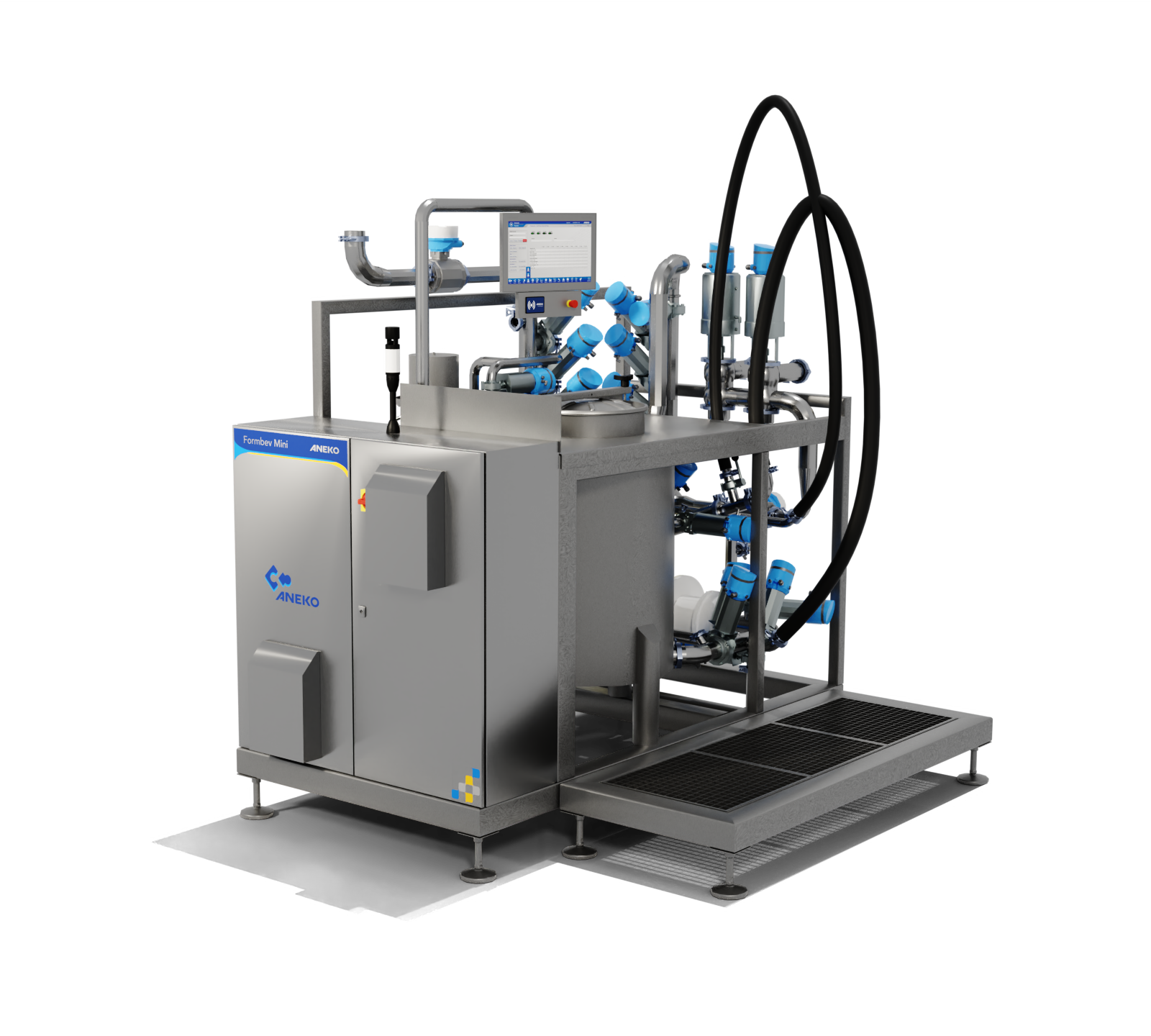

Formbev Mini

Syrup or beverage formulation system, mounted on a skid, fully automatic, designed so that it can be easily integrated into any processing unit.

Working as a batch process, this system formulates beverages or syrups in a preparation tank from recipes of concentrated parts.

‍

• The equipment is a variation of the standard Formbev for simple dissolution ingredients, moving towards a smaller footprint.
  ‍
• It can be set up with the following systems: simple dissolution tank, manual drum emptying system, centrifugal pump for product transfer, and product filtration system.
  ‍
• The system allows you to adjust the amount of product that you wish to produce from the selection of a recipe for a given product.
  ‍
• Has an inlet line of water controlled by a flow meter which counts the volume according to the volume entered in the recipe, depending on the step. The flush of concentrated with water is also measured and recorded on the system.

• Concentrated transfer flow-rate: up to 35,000 LPH, up to 4 bar.
  ‍
• Maximum product viscosity: 800 cP.
  ‍
• Standards: DIN / ISO.
  ‍
• Materials in contact with the product: 304 / 304L / 316 / 316L.
  ‍

* Other capacities available upon request.

• Smallest footprint
  Compact system designed to occupy as less space as possible in your plant, allowing greater use of the available floor space.
  ‍

• Greater efficiency with minimum loss
  The equipment can, optionally, have concentrates recognition, using wireless bar code readers, to ensure the consumption of each of the needed parts. The product change is instantaneous, without waste and with high-speed concentrate preparation to decrease the waiting time. Against other equipment in the market, Formbev MINI presents a big reduction in the consumption of water, less waste, lower energy consumption and provides the possibility of dissolving all types of concentrates, either liquid or solid.
  ‍

• CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure a thorough cleaning.
  ‍

• All the information, at any time
  Production reports with all the details of the process, including quantity of supplied product, time, operator name, name of the recipe, step by step description and syrup tank. This information can be delivered in a open database for consultation with possibility of access via ethernet from the device that the customer defines to all the records of use of the equipment.
  ‍

• Modifications control
  The edition of recipes is accessible by authorized operators that allows their creation and/or modification. This allows the simple creation and/or modification of recipes with flexibility. Optionally, it is possible to have a database with the extended history of the elaborations that have been carried out in the system.
  ‍

• Easy operation
  The process is controlled through the touchscreen provided by the equipment as HMI, from where all the operations can be carried out in a simple and intuitive way. Formbev MINI has the option to replicate the screen and the operation of the equipment remotely via an installed PC in any area of the plant.
