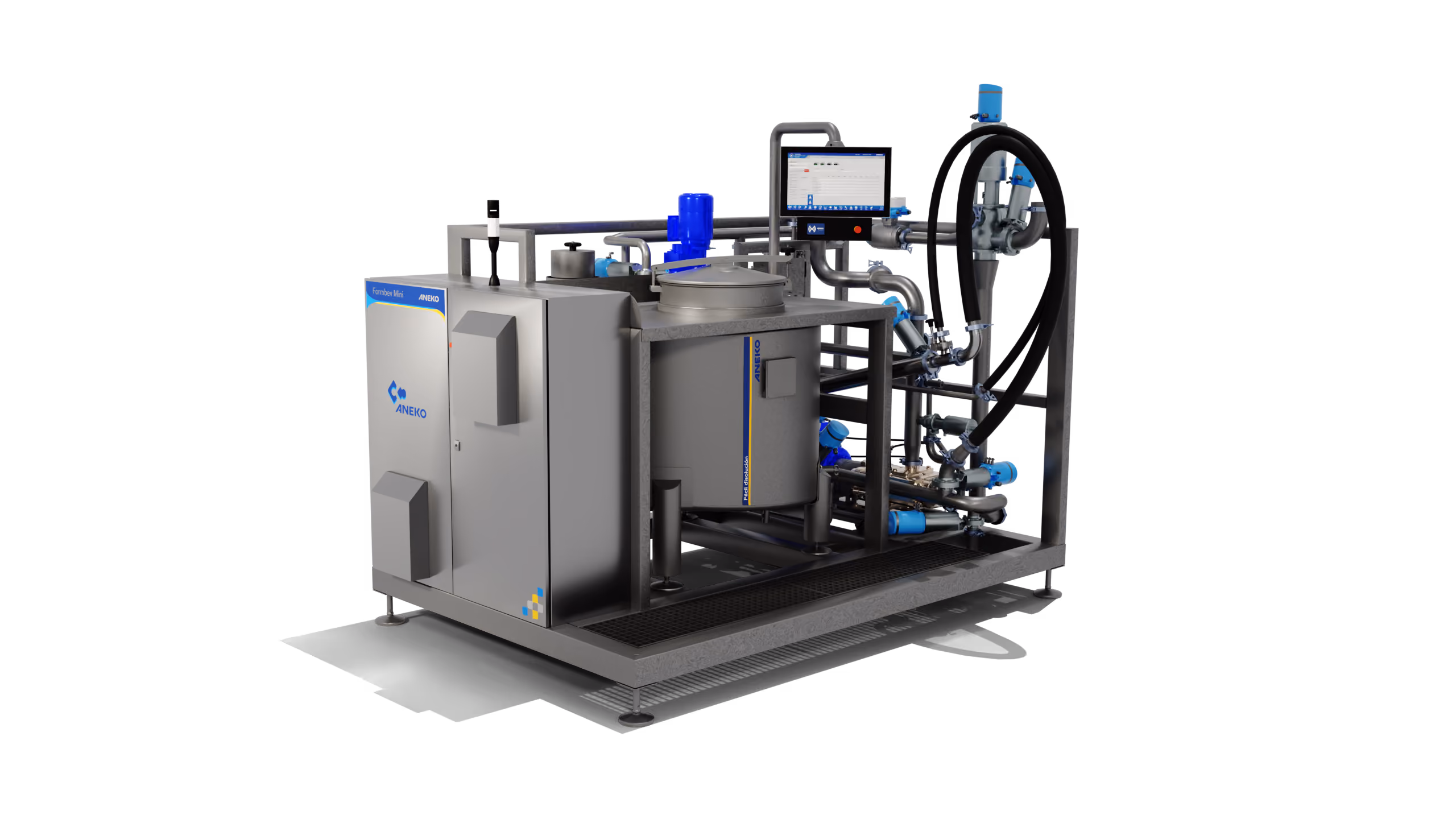

Formbev Mini

Fully automatic, skid-mounted mini formulation system designed for seamless integration into any beverage or syrup processing line. Operating as a batch process, the system accurately prepares syrups and beverages in a dedicated mixing tank based on pre-programmed concentrated recipes.

• Optional wireless barcode readers enable automated concentrate recognition, ensuring precise ingredient consumption and full traceability for every batch.

• Product changeovers are instantaneous and waste-free, providing high-speed concentrate preparation while significantly reducing downtime. Compared to conventional market alternatives, the Formbev Mini delivers exceptional resource efficiency, including substantial water savings, minimized waste, and lower energy consumption.

• The system maintains the versatility to dissolve all types of liquid and solid concentrates, providing an efficient and flexible solution for concentrate preparation.

• Concentrated transfer flowrate: 5,000 LPH to50,000 LPH.
  ‍
• Centrifugal pump or positive pump according tothe product requirement.
  ‍
• Materials in contact with the product: 304 / 304L /316 / 316L.

•  CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure complete and thorough cleaning.


• All the information, at any time
  Constant data registry, exportable and filterable by production, with the possibility of accessing all equipment records through the local network from the device defined by the customer.
  ‍
• Smallest footprint
  Compact system designed to occupy as little space as possible in your plant, allowing for greater use of the available floor space.
  ‍
• Modifications Control
  Recipe editing is accessible to authorized operators, allowing for the simple creation and modification of recipes with maximum flexibility. ( Optionally, a database can be provided with an extended history of the formulations and production runs carried out by the system.)

• Easy operation
  The process is controlled through the touchscreen HMI provided with the equipment, allowing all operations to be performed in a simple and intuitive way. Formbev Mini also offers the option to replicate the screen and operate the equipment remotely through a PC installed in any area of the plant.

‍
