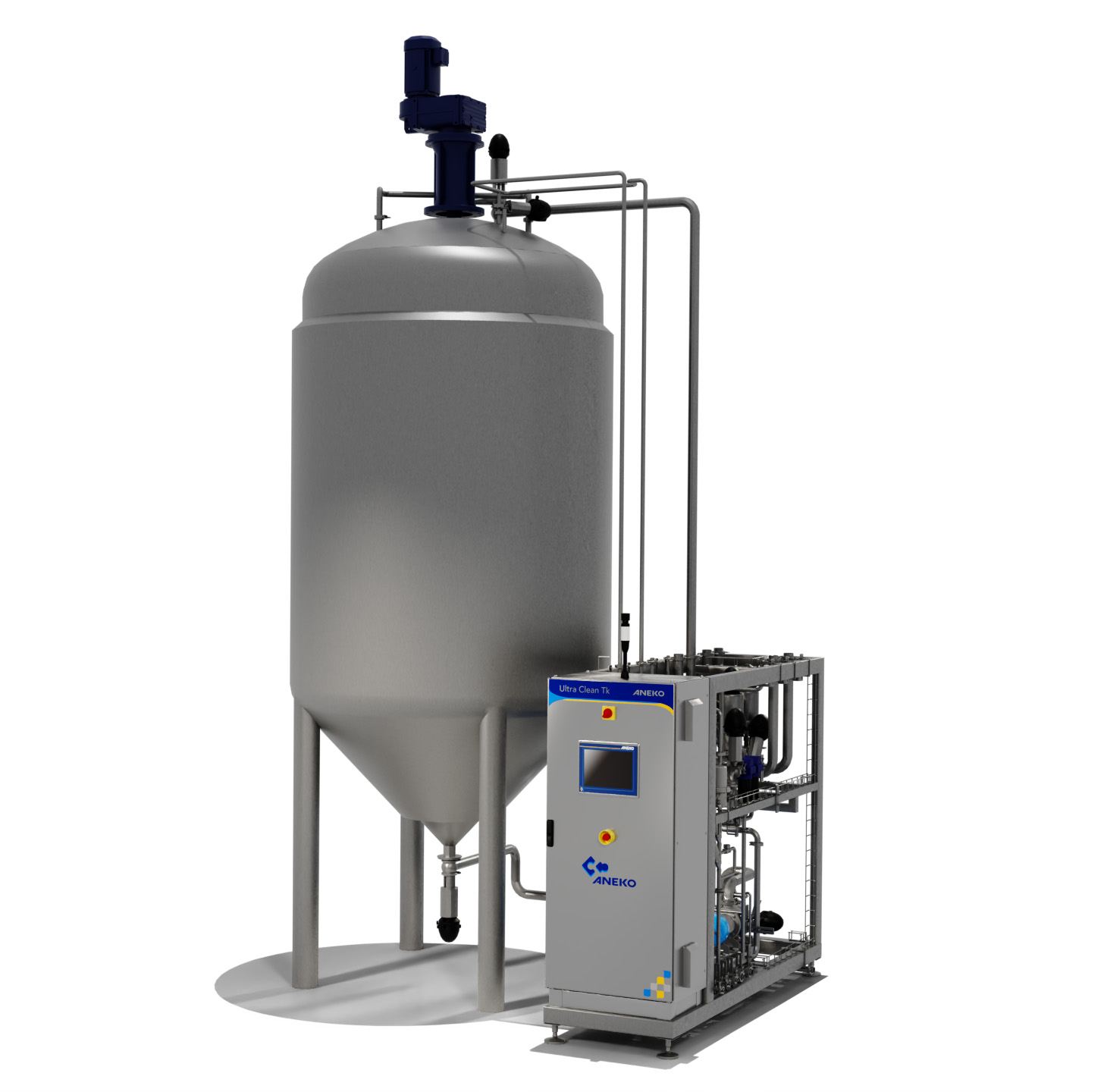

Tk Ultra Clean

TK Ultra Clean has been developed to work as a buffer tank between the pasteurization process and the filling machine. It is primarily used for sensitive products that have an Extended Shelf Life (ESL) but do not need absolute sterility like UHT products.

‍

• Vertical tank with support feet.
  ‍
• Filtered sterile air (HEPA and UV treatment) to prevent external contamination.
  ‍
• Advanced sanitization (up to Log 4 microbial reduction).
  ‍
• Typically used for fresh products that require refrigeration and have an Extended Shelf Life.
  ‍
• Intensive disinfection with aggressive CIP parameters (peracetic acid, high temperature, etc.).

• Capacities: up to 180,000 L.
  ‍
• Materials in contact with the product: AISI 304L (AISI 316L with corrosive liquids).
  ‍
• CIP device: Cleaning spray ball mounted in the top of the tank, removable for inspection.
  ‍

* Other capacities available upon request

• CIP Ready
  Thought from its origin to be compatible with in-line CIP and designed to ensure a thorough cleaning.
  ‍
• Process Safety
  Materials in contact with the product are stainless steel AISI 304/316L and other sanitary materials, ensuring an operation with no possibility of contamination based on a design that's focused on the highest quality and sanitary standards.
  ‍
• All the information, at any time
  Constant data registry, exportable, filterable by production, with the possibility to access all the records of the equipment through the ethernet network from the device that the customer defines.
  ‍
• Easy operation
  The process is controlled through the touchscreen provided by the equipment as HMI, from where all the operations can be carried out in a simple and intuitive way. Tk Ultra Clean has the option to replicate the screen and the operation of the equipment remotely via an installed PC in any area of the plant.
